ReWiND Logo PEEK: Guiding and Minimal Image Representations for Zero-Shot Generalization of Robot Manipulation Policies

Jesse Zhang*1,2,3, Marius Memmel*1,2, Kevin Kim3,
Dieter Fox1,4, Jesse Thomason3, Fabio Ramos2, Erdem Bıyık3, Abhishek Gupta†1, Anqi Li†2,
1University of Washington, 2NVIDIA, 3University of Southern California, 4Allen Institute for AI

*Co-first Author †Equal Advising
arXiv Code (in progress)

Summary

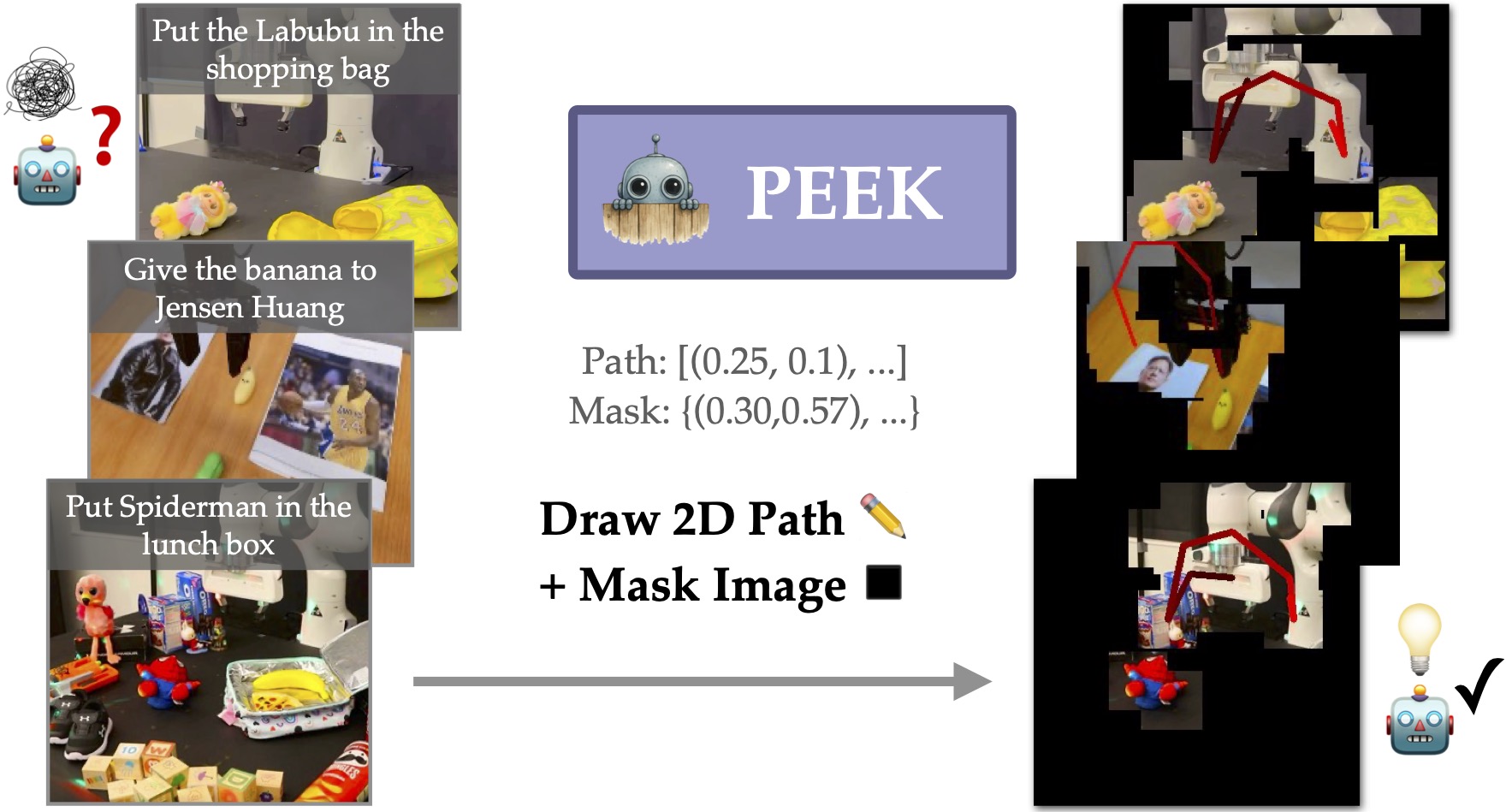

PEEK enhances the zero-shot generalization ability of any RGB-input manipulation policy by showing policies where to focus on and what to do. This guidance is given to the policy via a VLM that predicts paths and masking points to draw onto the policy's input images in closed-loop. This allows policies to focus on just how to execute low-level actions.

1. VLM Fine-tuning and Data Preparation

Overview:

To help generalization of the policy, the VLM itself needs to be able to generalize well to new tasks. We fine-tune a pre-trained VLM on a large, automatically labeled robotics dataset to produce paths and masking points. Paths help the policy understand what to do, and masking points help the policy understand where to focus on.

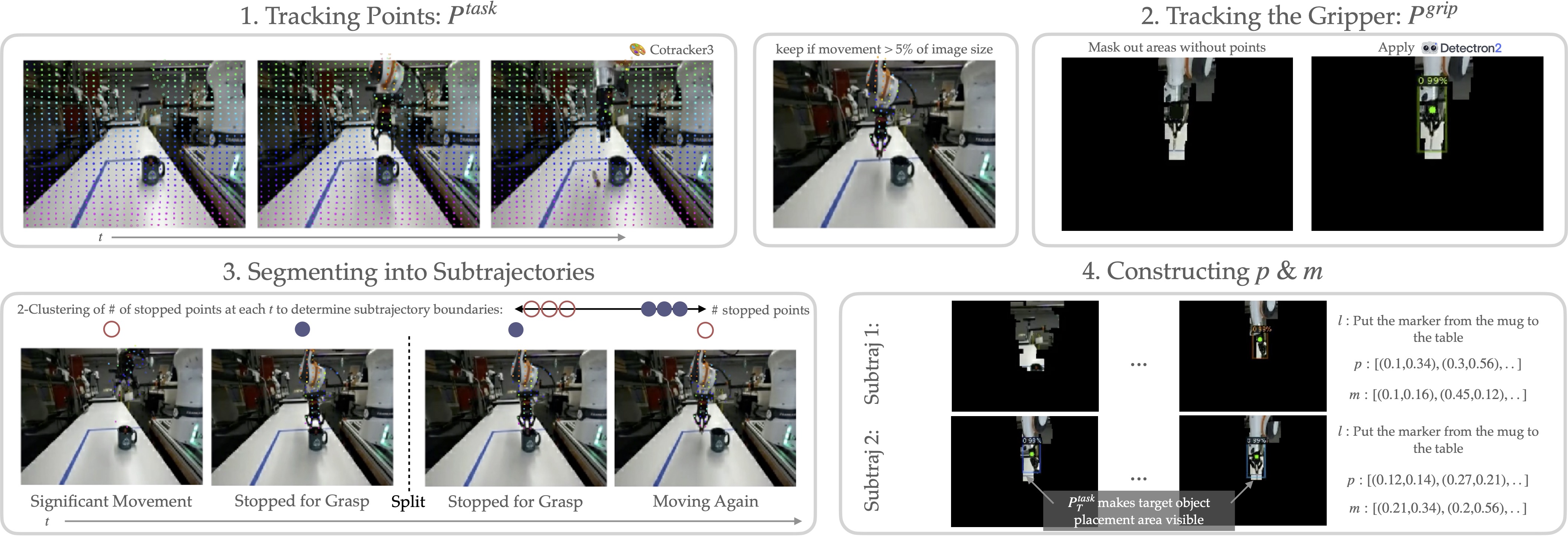

Data Labeling Pipeline:

The data labeling pipeline: (1) Detect task-relevant moving points, (2) mask irrelevant areas and extract gripper paths, (3) segment trajectories, and (4) generate gripper paths and masking points for each segment. This scalable labeling pipeline allows to label 20 robotics datasets from Open-X!

VLM Fine-tuning:

We fine-tune a VILA-1.5-3b on the automatically labeled data to produce paths and masking points conditioned on robot image observations and task instructions.

2. Policy Training and Inference

At training time, we use the VLM to predict paths and masks every $H$ steps in closed loop. These paths and masks are drawn onto all images that the policy sees, $o_t^{p,m}$, where it predicts low-level environment actions. At inference time, the VLM is used in the same way, constantly predicting updated paths and masks in closed loop during policy execution. This process is compatible with any RGB-input policy!

Experiments and Results

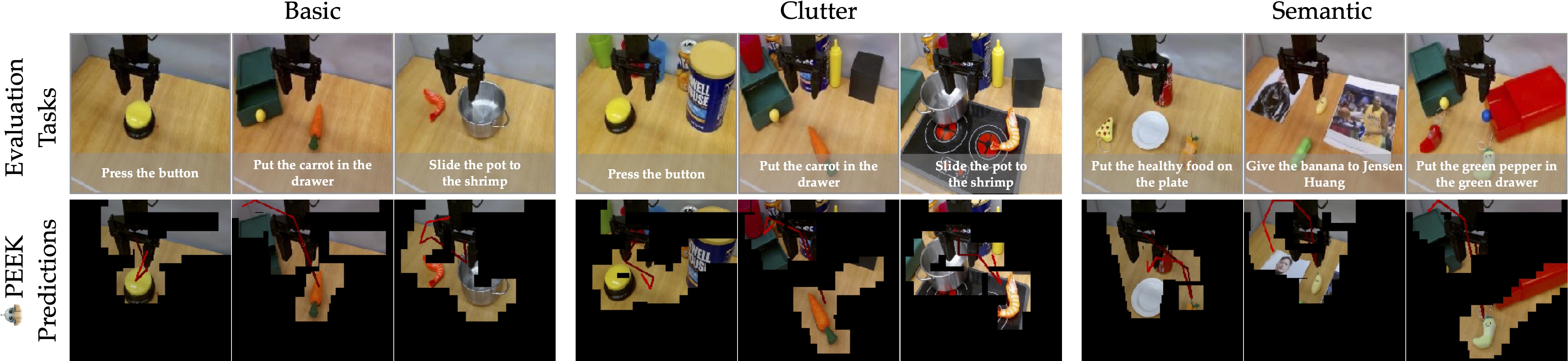

Our Environments and initial PEEK VLM predictions.
We perform 535 real-world evaluations across 17 task variations and implement PEEK on top of 3 policy architectures.

(1): Franka Sim-to-Real: We train only in simulation and evaluate zero-shot in real with a 3D policy (3DDA).
(2): WidowX Bridge: We train on the BRIDGE dataset and evaluate zero-shot on our custom WidowX setup.

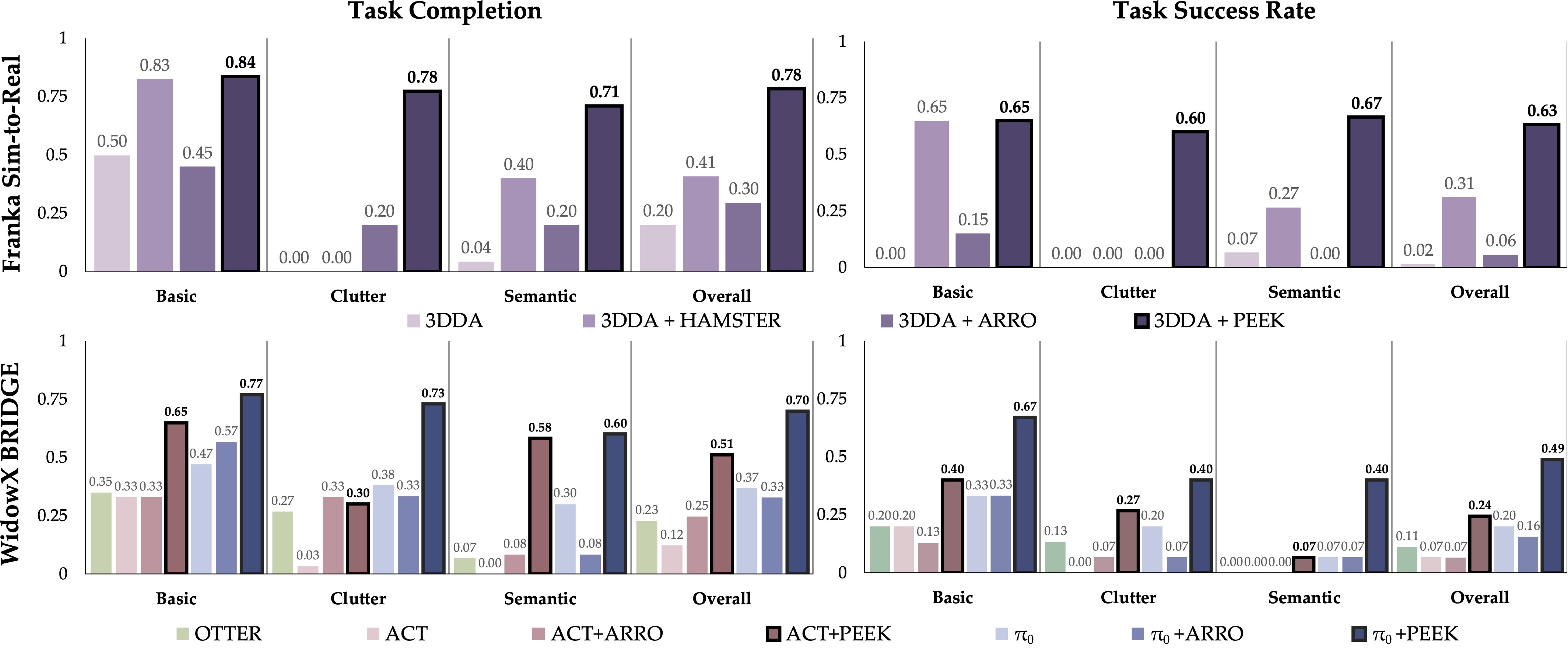

PEEK improves performance of 2D (ACT, $\pi_0$) and 3D imitation learning (3DDA) policies in generalization to new task variations. We separate results into a variety of sections demonstrating various capabilities of PEEK below:


Extreme Clutter and Policy Reactivity

3DDA+PEEK, training data: Block Stacking in Simulation

Task: Put the blue cube on the red cube

Task: Put the blue cube on the red cube

8x speed, pauses come mainly from FoundationStereo depth queries.



Semantic Generalization


Standard $\pi_0$, training data: BRIDGE

Task: Give the banana to Jensen Huang (gets stuck)

Task: Put the green pepper in the green drawer (wrong drawer)

Task: Put the healthy food on the plate (grabs pizza instead of carrrot)

$\pi_0$+PEEK, training data: BRIDGE

Task: Give the banana to Jensen Huang

Task: Put the green pepper in the green drawer

Task: Put the healthy food on the plate

Videos play at dynamic iPhone timelapse speed



Visual Clutter

Vanilla ACT, training data: BRIDGE

Task: Push the button (doesn't know what to do)

Task: Put the carrot in the drawer (goes for drawer)

Task: Slide the pot to the shrimp (goes for shrimp)

ACT+PEEK, training data: BRIDGE

Task: Push the button

Task: Put the carrot in the drawer (partial success: missed drop)

Task: Slide the pot to the shrimp

Videos play at dynamic iPhone timelapse speed



Extreme Object Generalization

3DDA+PEEK, training data: Putting cans on pans in Simulation

Task: Put the flamingo on Kobe Bryant


Task: Close the drawer


Task: Put the Labubu toy on the oreo box

Task: Put the spiderman in the lunch box


Task: Put the Labubu toy in the shopping bag


Videos play at 8x speed



What Does the Policy See?


Task: Put the green pepper in the green drawer

Task: Put the blue block on the red block

Task: Put the healthy food on the plate

Task: Put the red block on the blue block



Ablation Study: Paths vs Masks?


Ablation of path and mask supervision on success rate in simulation.
Paths p Masks m Success (%)
✗ ✗ 33.5 ± 3.1
✓ ✗ 52.8 ± 2.9
✗ ✓ 65.6 ± 3.1
✓ ✓ 73.6 ± 3.9

PEEK benefits from both paths and masks, with the combination of the two achieving the highest success rate on just block stacking, without any generalization challenges, in simulation. We can see in the real-world results that masks become even more important in cluttered real-world scenes.
